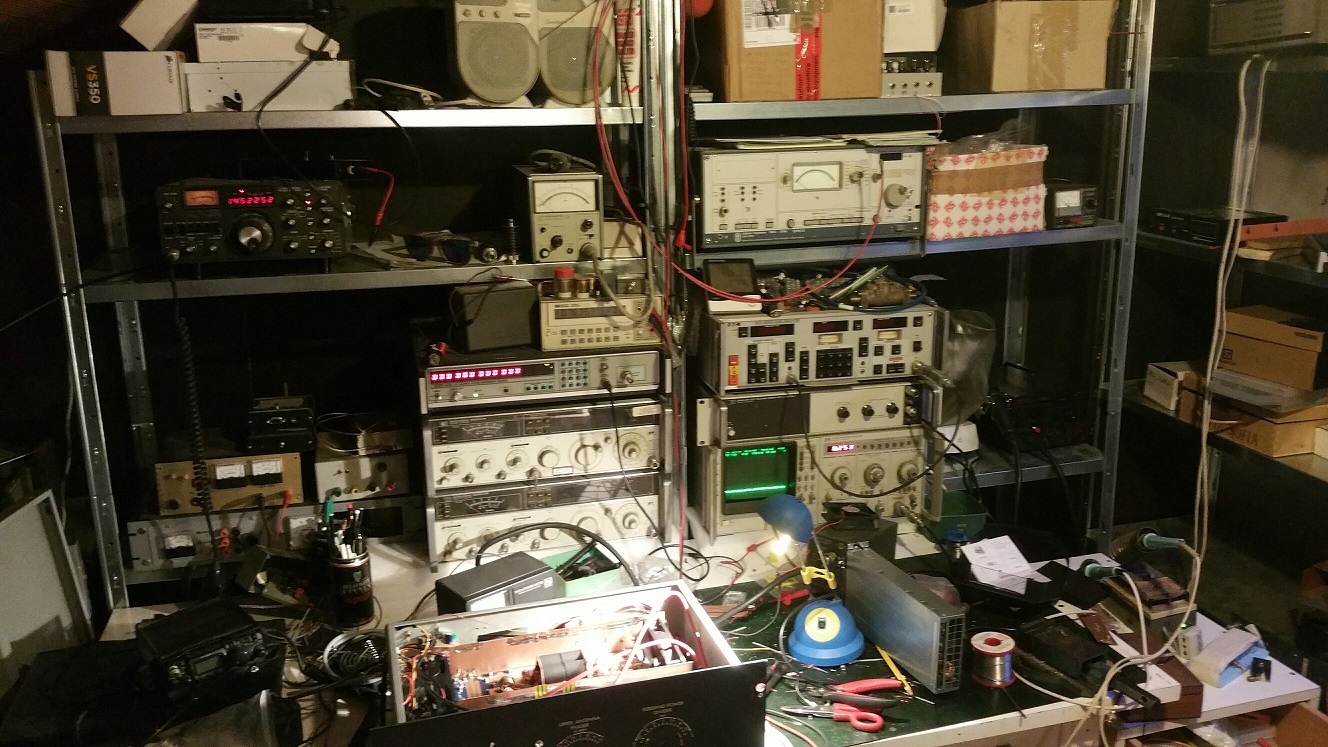

My new Lab, same equipment, but in my house

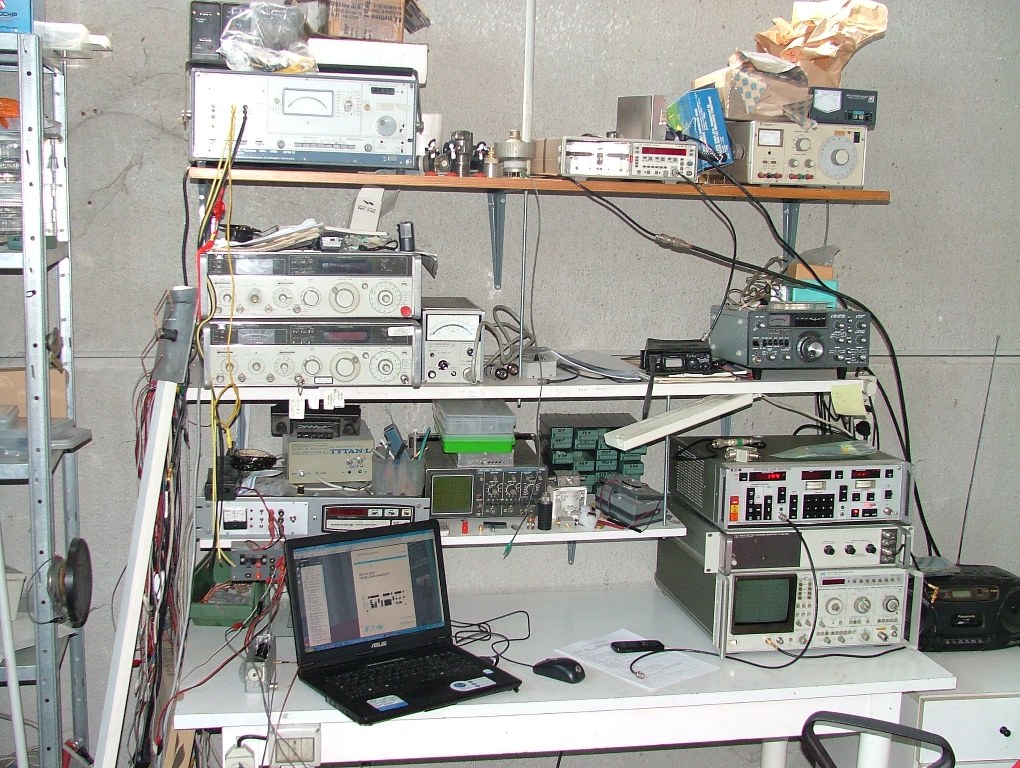

My Lab

My Lab

My old Lab

My Lab

W&G SPM12 Selective Voltmeter

2x HP 8640B RF Generator

HP432 Bolometer

IEP frequency counter

Eaton 2075B Noise measure

HP8569B Spectrum analyzer with HP 8444B tracking

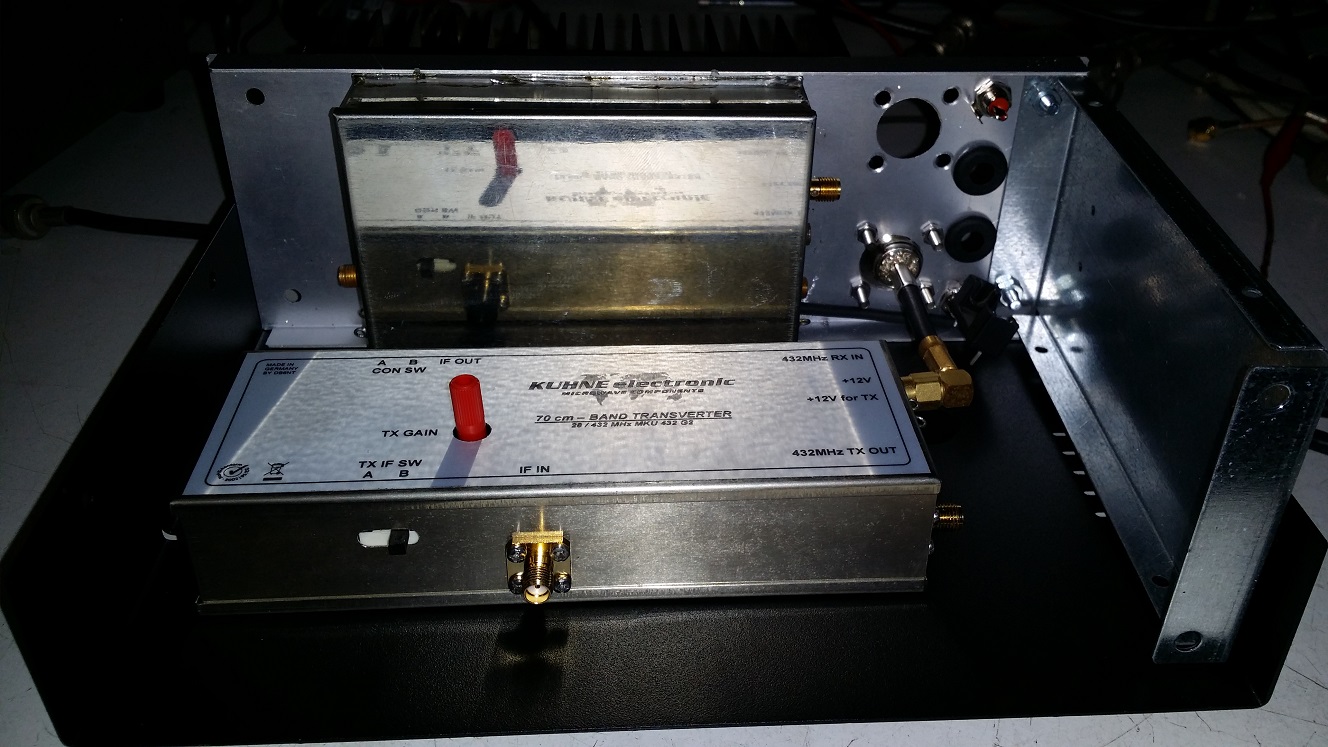

432 MHz X-verter with Khune module

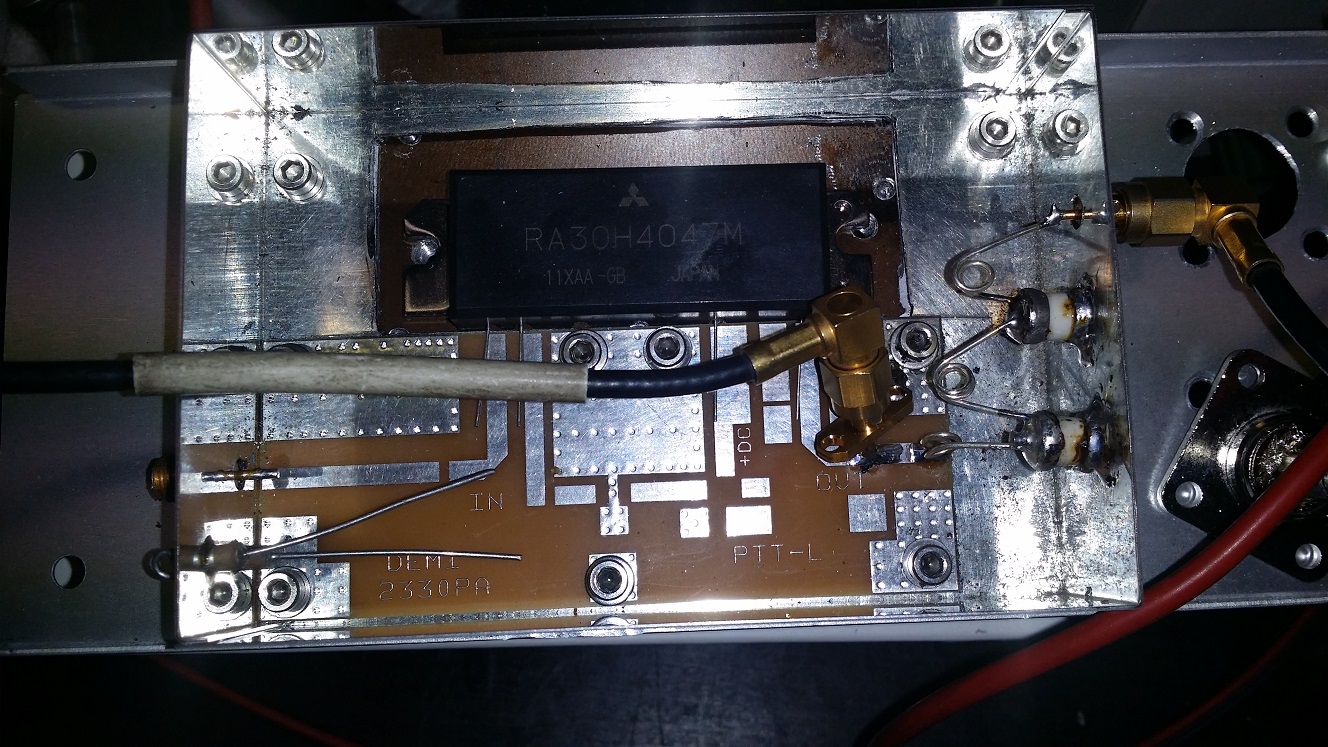

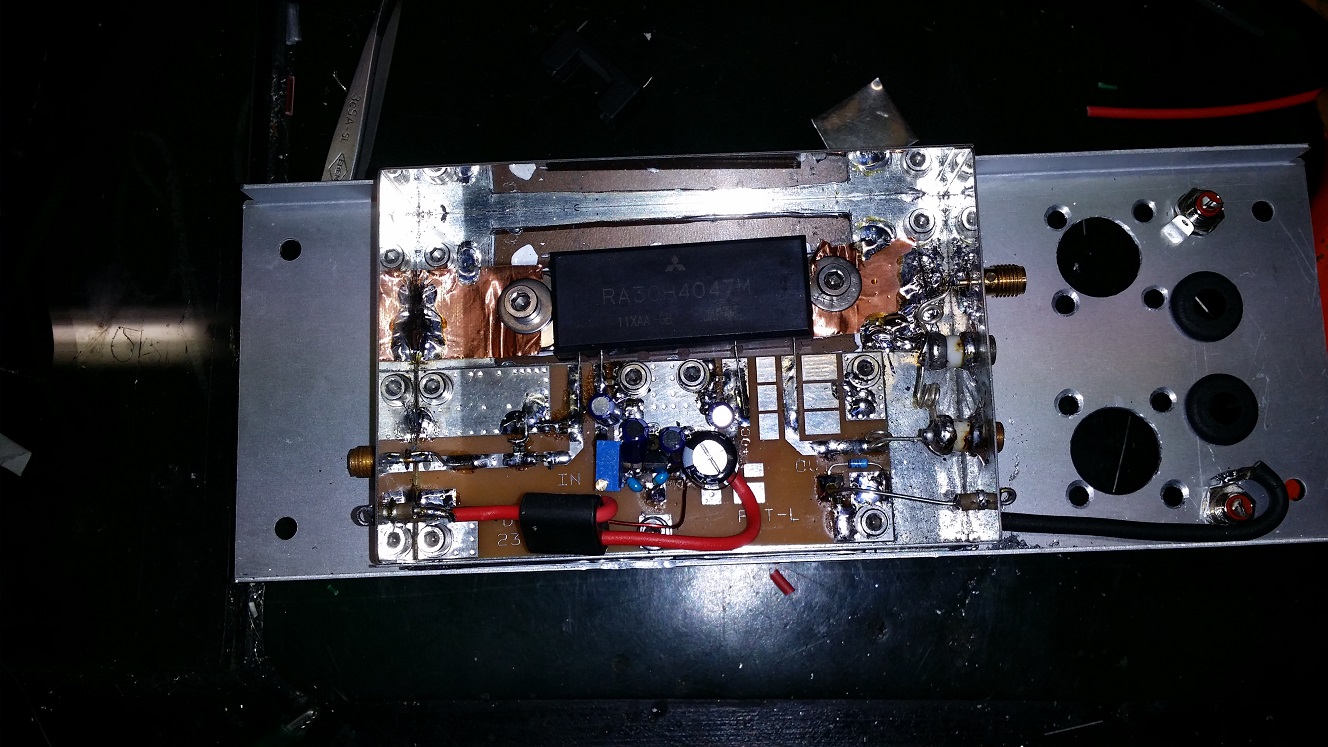

432 MHz X-verter RA304047M module


432 MHz X-verter filter tuning

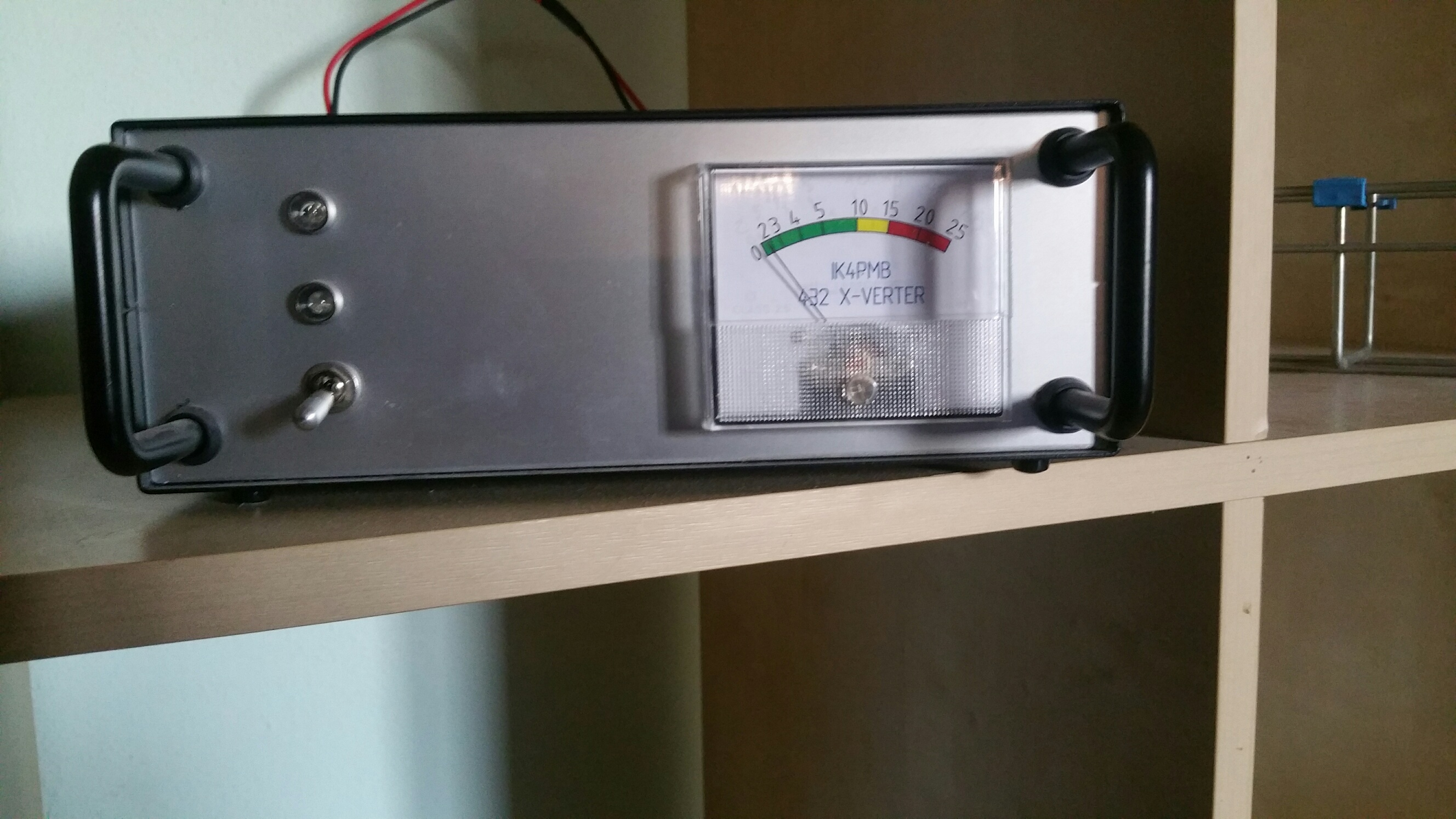

432 MHz X-verter exterior


Remote control box for EME system

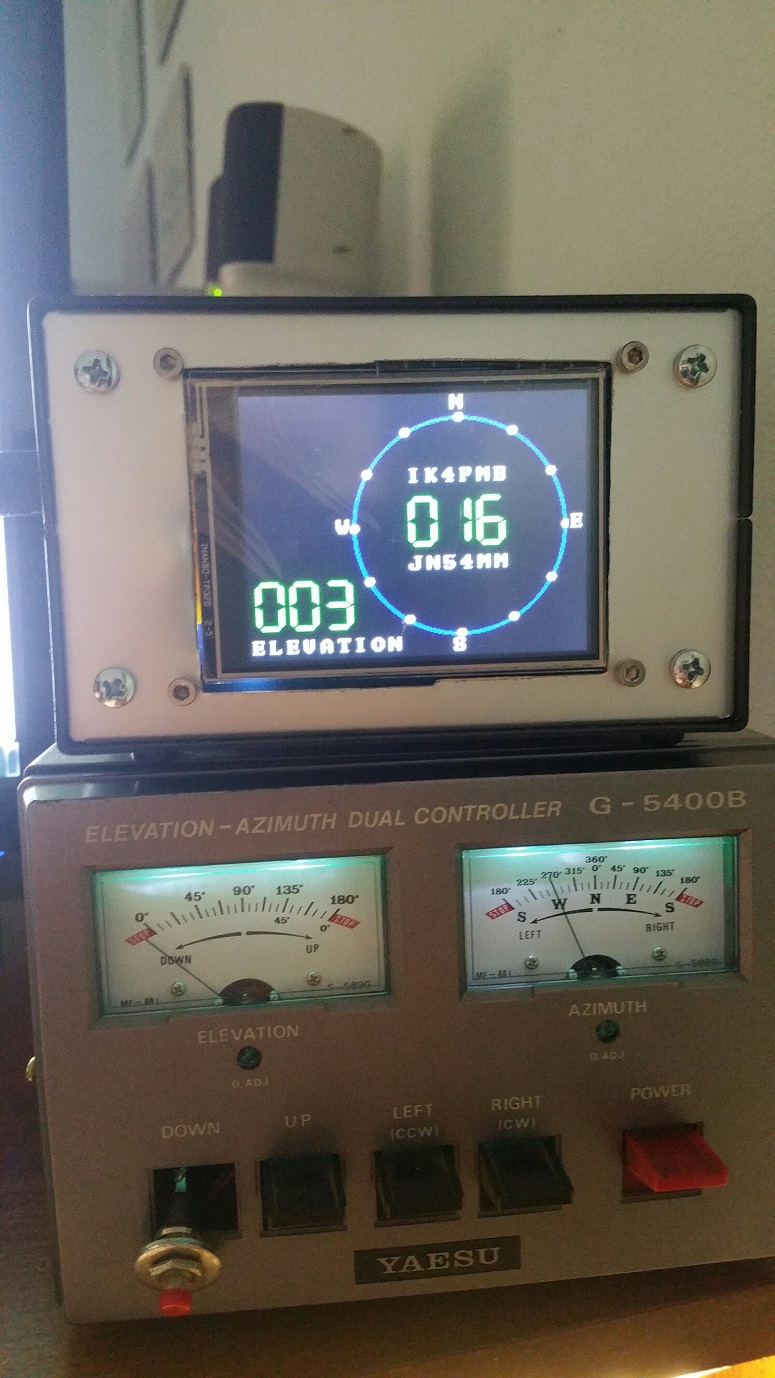

Arduino control box

50 MHz 500W Amplifier with Italab Module

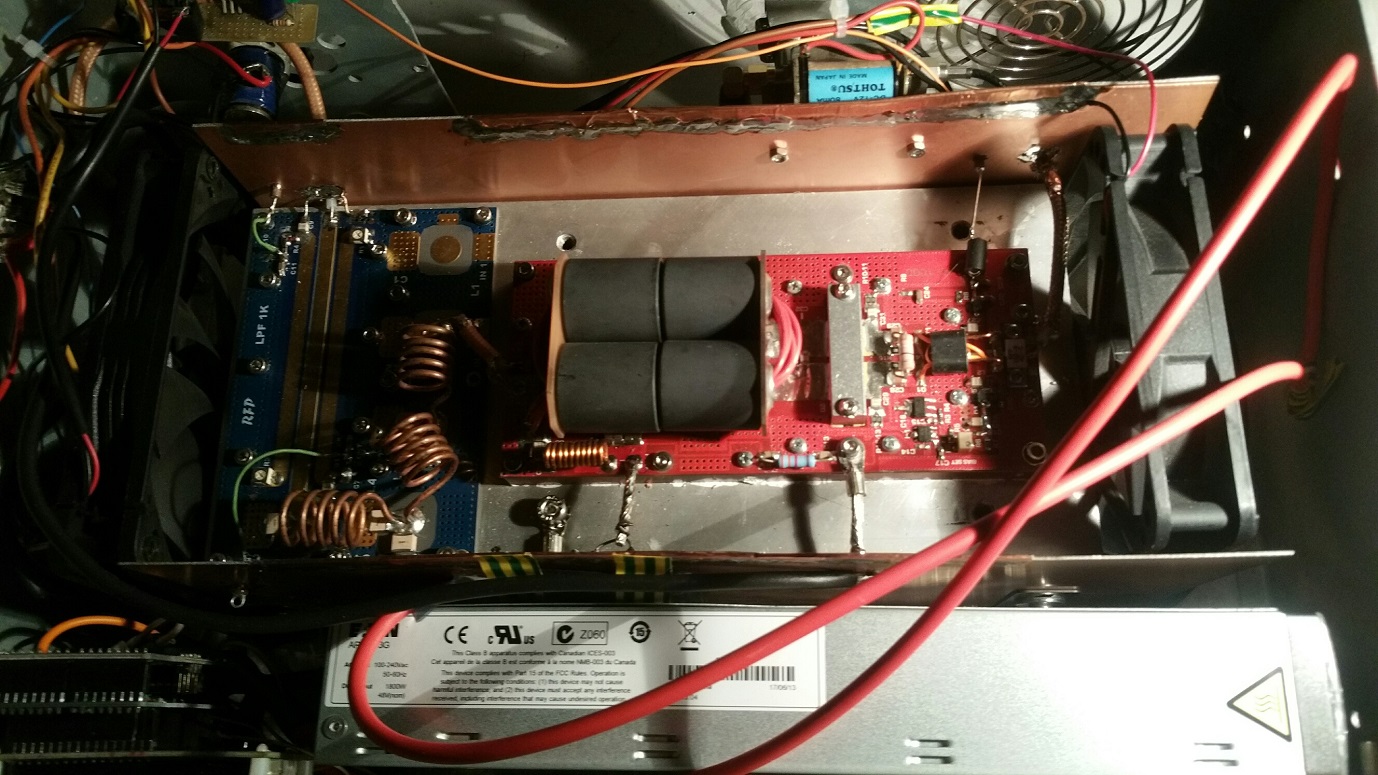

50MHz PA

Upgrading K3 with I4YSS, IK4HLQ

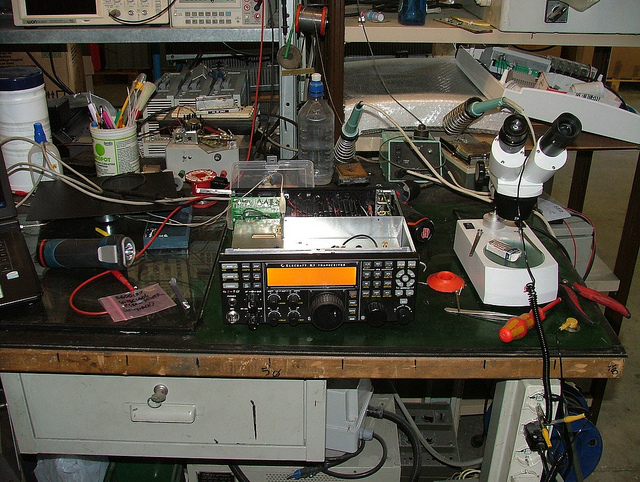

After summer thunderstorm, I found my K3 I/O board was not working, after chip change I/O board was working again

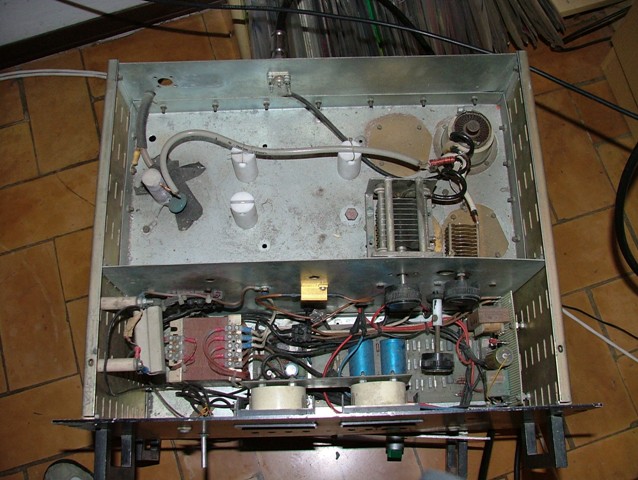

FM Broadcast PA 4 x 4cx250 modified to 144 MHz 1993

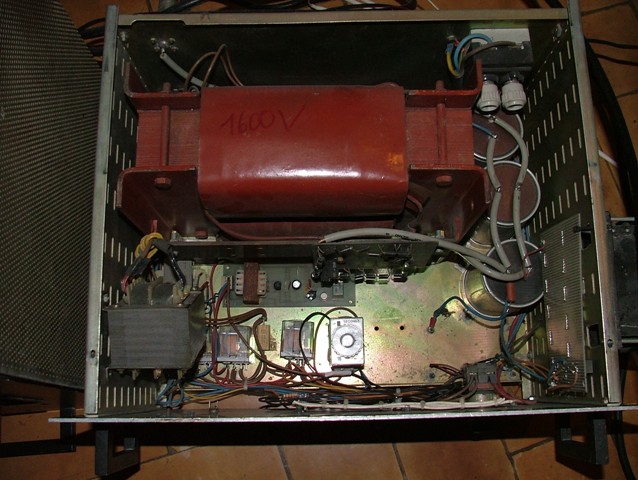

inside view click for RF

X-Verter 28 MHz - 144 MHz 1993 ARRL Handbook design

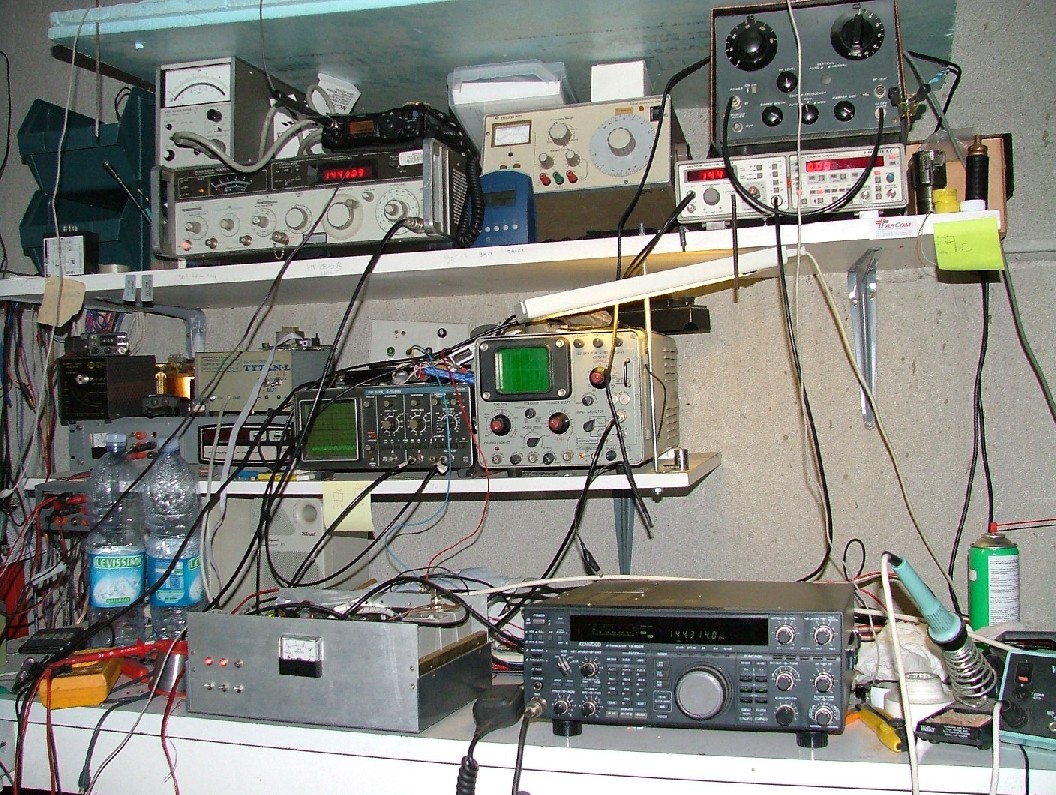

recent test

New 144 MHz X-verter front end I0FTG design 2006

still without transformers

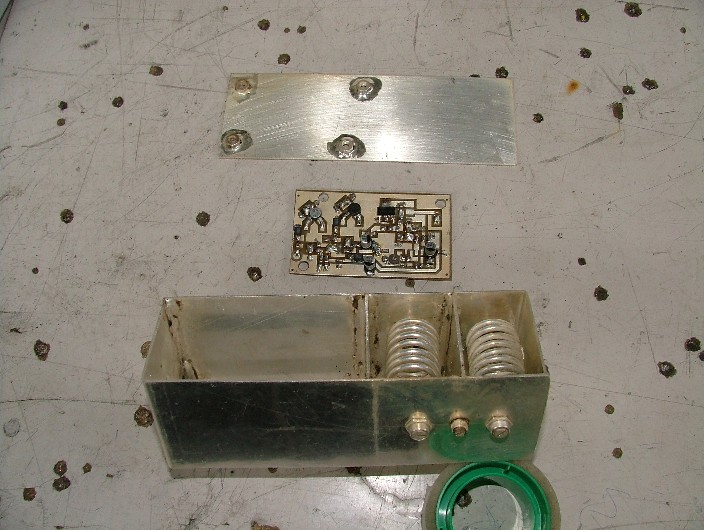

box with pass band filter. Thanks to Franco IW4APQ for silver plating

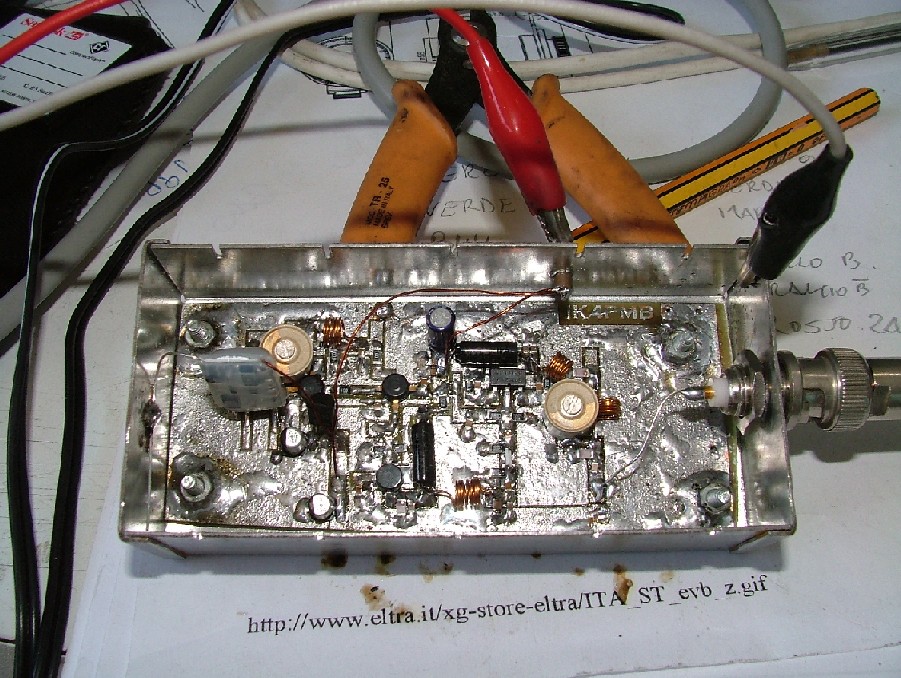

116 MHz local oscillator with thermal heater

Testion GI7b on 144 MHz 2006

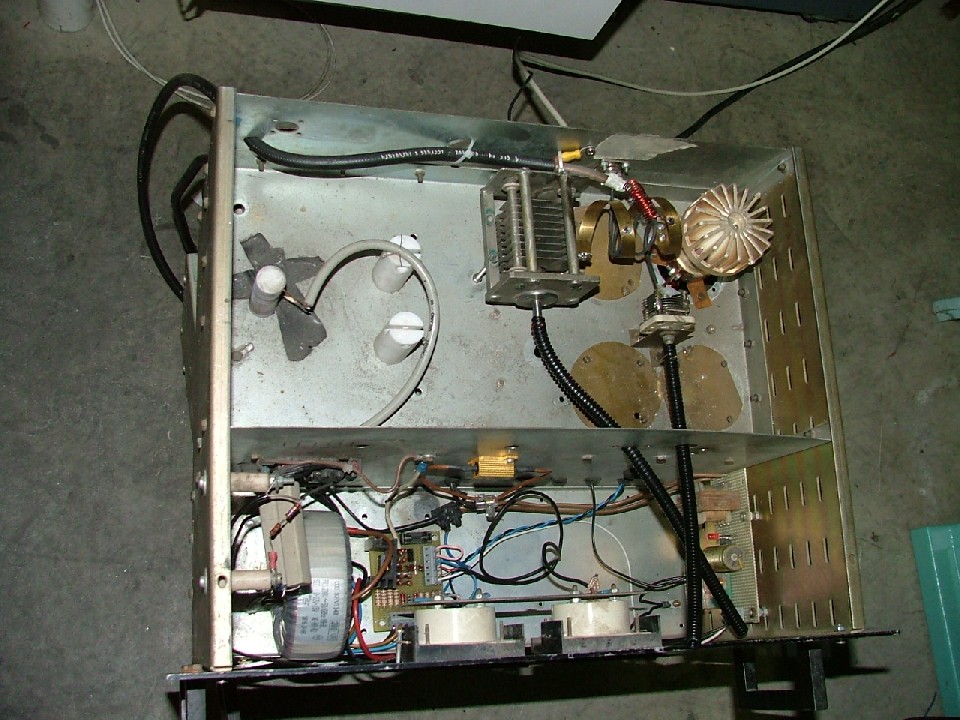

gi7b test

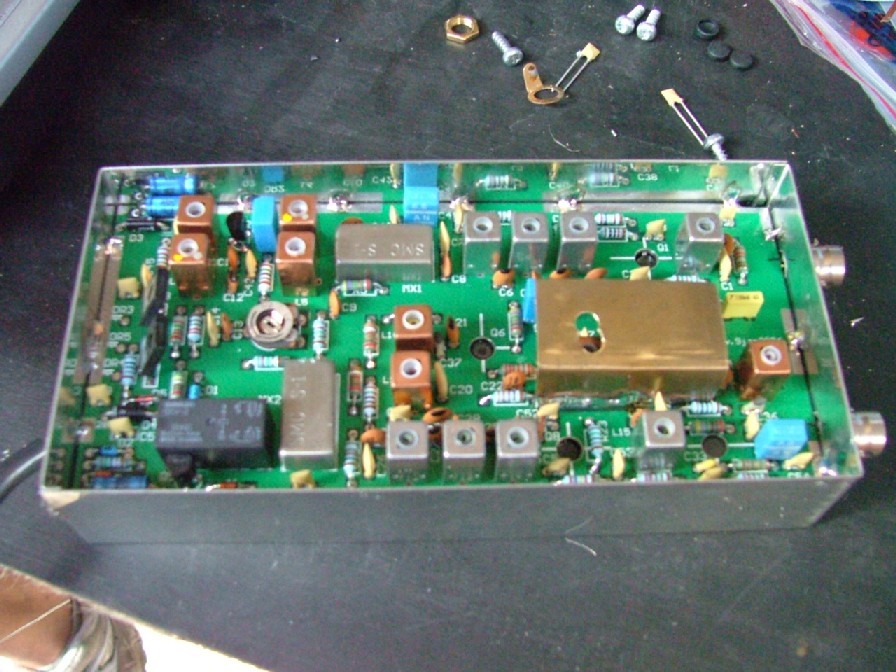

4m OZ X-verter 2007

4m OZ X-verter

4m GI7B PA 2008 Still QRX

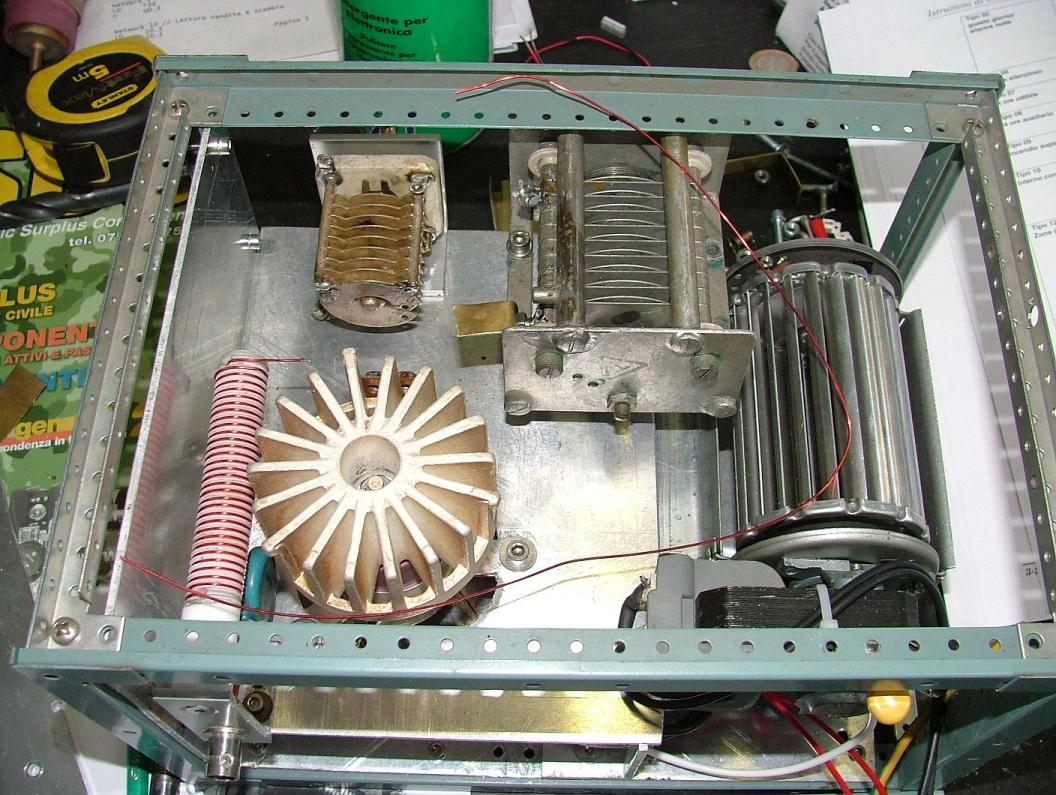

4m GI7B

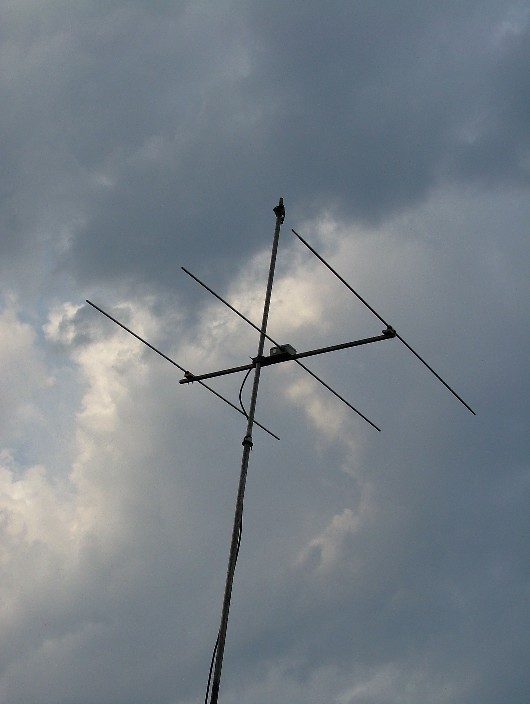

4m 3e DK7ZB design 2007

3el 4m dk7zb
